TITAN PLA 750W













TITAN PLA 750W







TITAN PLA: Power Up with Platinum Excellence

Introducing our premium platinum-rated power supply, created in exclusive collaboration with Seasonic. Delivering unmatched efficiency, rock-solid reliability, and superior performance, this power supply ensures your high-end PC runs flawlessly. Elevate your system with cutting-edge technology and unbeatable power stability.











TITAN PLA 750W



Next-Gen Power: Align with the Newest & Highest Standardss

Built to ATX3.1 and PCIe 5.1 standards, the TITAN PLA comes with the 12V-2X6 cable to deliver unmatched safety, efficiency, and performance. Upgrade your system with next-gen power.

Peak Wattage Support – 2x of Total PSU Wattage

Peak GPU Wattage Support - 3x of GPU Wattage

Hold up time – Above 21ms



TITAN PLA 750W
TITAN PLA 750W



90% Efficiency Power Supply:

80 PLUS & Cybenetics Platinum Certified

Designed for 90% efficiency, our power supply maximizes energy savings while delivering top-tier performance. Go green and stay powerful without compromise.









TITAN PLA 750W

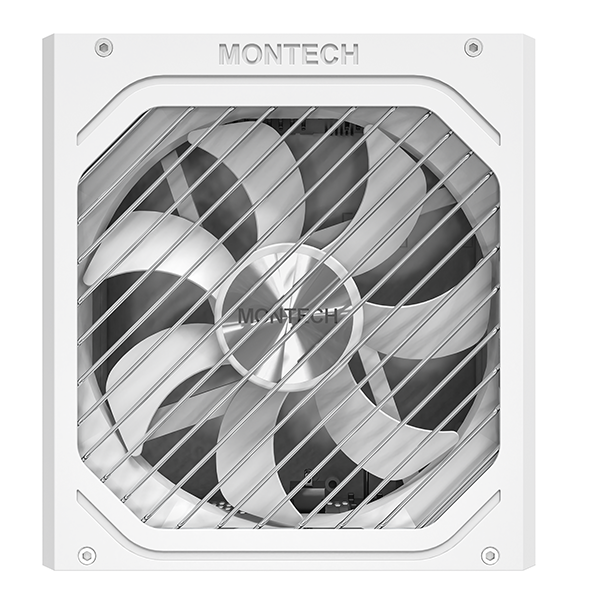

Silent Performance: Cybenetics A+ Certified with 135mm FDB Fan

Experience silent power with TITAN PLA’s 135mm ultra-quiet FDB fan. With Zero Fan Mode, the fan stays off under low loads (15-20%), so your system runs quietly even during light tasks.

Cybenetics LAMBDA A+ Certified



TITAN PLA 750W
TITAN PLA 750W



Premium Build: Ultra Soft & High-Density Embossed Cable

TITAN PLA features embossed cables, offering a luxurious texture and unmatched flexibility.  At 63% softer and 0.6mm thinner than traditional cables, they provide 39% higher density and a more efficient power transfer.









TITAN PLA 750W



Ultimate Protection: Guaranteed for 10 Years

Equipped with OPP, OVP, UVP, SCP, OCP, and OTP protections, ensuring industrial-grade safety for your system.  With a 10-year warranty, you get unmatched reliability and peace of mind for the long haul.









Specifications

Model

TITAN PLA 750W

Wattage

750

from factor

ATX / EPS

Cybenetics Efficiency

Cybenetics Platinum

Cybenetics Nosie

A+

80 PLUS Efficiency

Platinum

Input

Full Range

Dimensions (L*B*H)

160 × 150 × 86

Fan

Fan Size

135mm

Bearing

FDB

hybrid mode fan

digital control

MTBF

100,000 hours

Operating Temperature

0 - 50 °C

Protections

OPPOVPUVPOCPOTPSCP

Regulatory

cTUVusTUVCBCCCBSMIEACCE

Connectors

M/B 20+4Pin

1(20+4)

CPU 4+4Pin

2(4+4)

PCIE 6+2

2(6+2)

SATA

8+2

Molex 4Pin

4

12VHPWR

1 (600W)



AC Input

100-240Vac 47-63Hz 10-5A

DC Output

+3.3V

+5V

+12V

-12V

+5VSB

Max. Output Current

20A

20A

62A

0.3A

3A

Max. Output Power

100W

744W

3.6W

15W

Total POWER

750W
