GAMMA II 550 GOLDGold certified PSU with 100 % Japanese electronic capacitors80 PLUS GOLD Certified |
GAMMA IIFor gamers who search for reliable and high efficiency power supplyGamma series offers most reliable, efficient and most desirable design for high-end PC builders. It incorporates LLC+DC-DC design, main Japanese capacitor, flat cables and up to 90% overall efficiency. Gamma series provides the most competitive price with low ripple noise and <±3% tight voltage regulation |
ADVANCED CIRCUITRY
LLC+DC to DC technology
The most desirable design for gamers nowadays, LLC design with a synchronous rectification based on a DC to DC topology.
DC to DC circuit design enhances systematic compatibility operation and provide stable voltage outputs. Therefore, maximize your system's performance.
High Quality Components
100% Japanese 105°C/221°F Capacitors
The New Gamma II series adopts 100% Japanese industrial level electronic capacitors for high durability, also achieve tight voltage and low ripple noise to enhance performance. Along with other high - quality components in the power supply, resulting stable wattage output and reliable performance.
80 PLUS GOLD CERTIFIED
Montech Gamma series provides high efficiency up to 90% and is certified to 80 PLUS® Gold. Also, the series has been optimized with all generations of Intel's and AMD's processors to maximize energy saving.

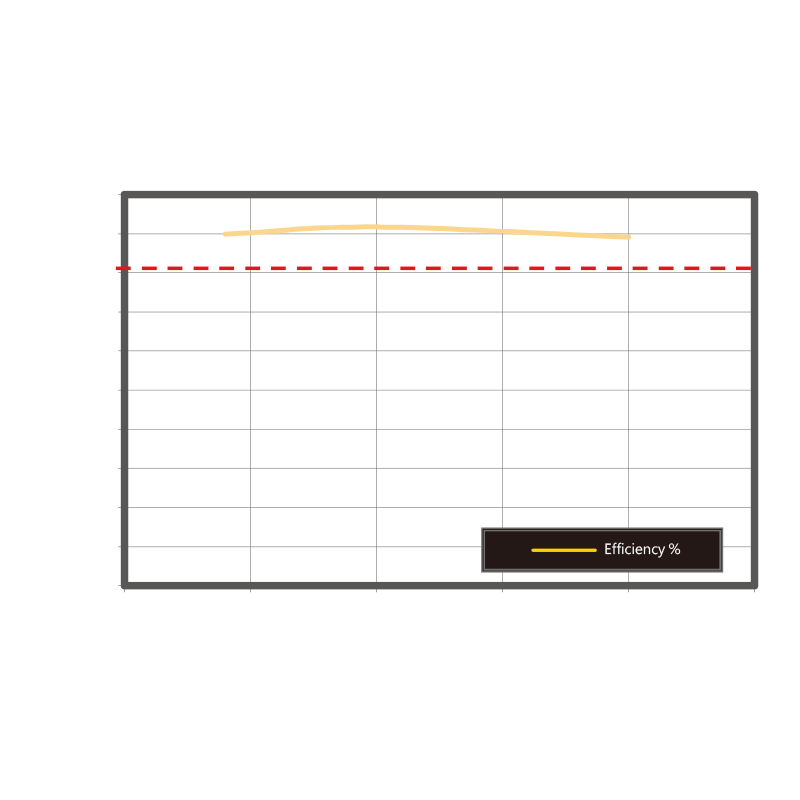

Efficiency
Gamma II can effectively save the energy consumption and guaranties a minimum of 92 % efficiency, producing less heat generation.
Powerful Single +12V Rail
Powerful single rail +12 V and DC-DC circuit provide a stable and reliable supply to Graphics Cards and other pc components
120MM silent fan
High quality fan provides strong airflow with low noise, which makes low temperatures and quiet operation.
Fan RPM vs Load
Shows silent operation and sufficient airflow.
Full Flat Cables
The new Gamma II series incoorporate the flat cables, which can increase the airflow and improve chassis thermal performance, also allowing for easy cable routing.
Cables
GAMMA II series offer sufficient amount of cables. Also, the length of the cables are longer which makes building easier.
|
M/B 20+4 Pin |
1 |
|
CPU 4+4 Pin |
2 |
|
PCIE 6+2 Pin |
2 |
|
SATA |
8 |
|
Molex 4Pin |
3 |
| FDD | 1 |
HARDWARE PROTECTION
|
OPP UVP OVP SCP OCP |
5 year warrantyGamma II series offer 5 year warranty since the date of purchase. "Warranty service doesn't extend to power supply used for Bitcoin Miner." |
Trustworthy Manufacturing, Dedicated to Outstanding Products.Montech is committed to the development of PC gaming chassis, power supplies and cooling to the highest standards. Our designs and attention to quality is like none other. We strive to bring the best price to performance ratio to consumers.
Over 30 Years of Industry Experience.-Excellence is our Reputation- Being a part of the PC industry for over 30 years, Telon is proud to present it's PC Gaming brand Montech! |
Each Montech Power Supply goes through strenuous quality testing on the highest end equipment before they are shipped out to you.
Specifications
|
Product Name |
GAMMA II 550 |
|
|
ATX Version |
ATX12V |
|
|
PFC |
Active PFC (>0.9 typical) |
|
|
Input Voltage |
100-240Vac |
|
|
Input Current |
8A |
|
|
Input Frequency |
47-63Hz |
|
|
Dimensions (L*B*H) |
140*150*86mm |
|
|
Fan Size |
120mm |
|
|
Hold Up Time |
10msec (minimum) at 80% of full load at 230Vac input. |
|
|
Efficiency |
90% Typically |
|
|
MTBF |
>100,000 Hours |
|
|
Operating Temperature |
0-45°C |
|
|
Protections |
OVP / OPP / UVP / SCP / OCP |
|
|
Regulatory |
cTUVus / TUV / CB / CE / RoHS / FCC |
|
|
Connectors |
M/B 20+4Pin |
1 |
|
CPU 4+4Pin |
2 |
|
|
PCIE 6+2 |
2 |
|
|
SATA |
8 |
|
|
Molex 4Pin |
3 |
|
|
FDD |
1 |
|
|
AC Input |
100-240Vac 47-63Hz 8.0A |
||||
|
DC Output |
+3.3V |
+5V |
12V |
-12V |
+5VSB |
|
Max. Output Current |
20A |
20A |
45A |
0.3A |
2.5A |
|
Max. Output Power |
110W |
540W |
3.6W |
12.5W |
|
|
Total POWER |
550W |
||||
