APX 750W













APX 750W (DC to DC)

•    Built to Last with High-Quality Components

•  Whisper-Quiet 120mm Fan

•  Unleashes Precision Power with Dominance 12V Rail & DC-to-DC Technology

•   Full Voltage Compatibility

•   Robust Protection & 5-Year Warranty













APX 750W

Experience Gaming Bliss with MONTECH APX

Discover the MONTECH APX white-label series: your ultimate gaming companion. Engineered with high-end components and whisper-quiet fan performance, APX redefines excellence in the white-label market. Featuring a cutting-edge DC-to-DC design, it eradicates compatibility worries, setting a new standard for white-label power. Elevate your gaming prowess with APX.













Built to Last with High-Quality Components

APX PSUs Ensure Stable, Reliable Performance with High-Quality Components.











APX 750W

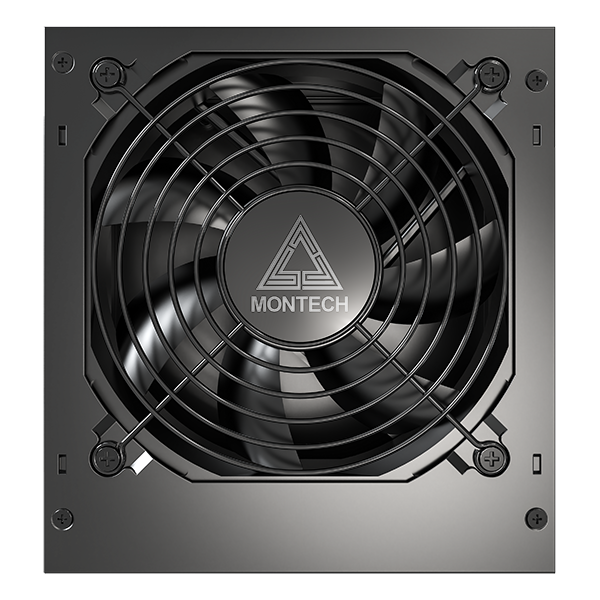

Whisper-Quiet 120mm Fan

Experience cool performance and silent operation with APX, featuring a whisper-quiet 120mm Hydraulic Bearing Fan. Keep your system running smoothly without the noise.

APX 750W

APX's robust +12V rails, deliver superior power under any system load. With advanced DC-to-DC converters, APX ensures efficient and precise voltage regulation, providing optimal power supply for all electronic devices across diverse applications. Power up with APX for reliability and performance like never before.

APX power supply is engineered to deliver consistent power across diverse electrical systems.

APX 750W

Flat Cables

Elevate your chassis thermal efficiency with the APX series, boasting flat cables designed to enhance airflow and optimize heat dissipation. Experience improved performance and effortless cable routing for a streamlined setup.

APX 750W

Experience industrial-grade power protection with APX, featuring all six essential mechanisms to ensure stable and safe system operation. Backed by a 5-year warranty, APX guarantees long-term reliability for worry-free usage. Power up with confidence with APX.



APX 750W
APX 750W

Product Name

APX 750W

ATX Version

Intel ATX12V

PFC

Active PFC

Input Voltage

100-240Vac

Input Current

12A

Input Frequency

50-60Hz

Dimensions (L*W*H)

150*140*86mm

Fan Size

120mm

Efficiency

80% Typically

Operating Temperature

0-45°C

Protections

OVP / OPP / OTP / SCP / OCP/ UVP

Regulatory

cTUVus / TUV / CB / CE / RoHS / FCC-ICES / EAC / RCM / BSMI

Connectors

M/B 20+4 Pin

1

CPU 4+4 Pin

2

PCIE 6+2 Pin

4

SATA

6

Molex 4 Pin

3



AC Input

100-240Vac 50-60Hz 12A MAX

DC Output

+3.3V

+5V

+12V

-12V

+5VSB

Max Output Current

18A

18A

62.5A

0.3A

2.5A

Max Output Power

100W

750W

3.6W

12.5W

Total Power

750W
