80 PLUS® White Certified High Quality ATX PSU
|
Good Choice to Build up Your System
MONTECH AP Series PSUs consist of high-quality components, rated power from 450W to 750W with up to 86% high energy-saving efficiency. Paired with the 120mm silent fan provides excellent air-cooling performance at a low noise level. Along with the Single +12V design, the MONTECH AP series PSUs are stable and reliable.
High Quality Components
High-quality components provide stable and reliable performance, effectively increase the durability of the PSUs.
120mm Silent Fan
AP series adopt a high airflow cooling fan while maintaining low operational noise. Allow your system to work quietly during high load.
Single +12V Output
The powerful single +12V output design provides more reliable support for your GPU and other PC components.
Warranty
MONTECH provides a 3-year warranty including all four protections to guarantee long-term reliable use.
Specifications
|
Product Name |
AP 650W |
|
|
ATX Version |
Intel ATX12V |
|
|
PFC |
Active PFC |
|
|
Input Voltage |
100-240Vac |
|
|
Input Current |
12A |
|
|
Input Frequency |
50-60Hz |
|
|
Dimensions (L*B*H) |
150*140*86mm |
|
|
Fan Size |
120mm |
|
|
Operating Temperature |
0-45°C |
|
|
Protections |
OVP / OPP / SCP / UVP |
|
|
Regulatory |
UL / CB / FCC |
|
|
20+4PIN |
1 |
|
|
4+4PIN |
2 |
|
|
SATA |
6 |
|
|
6+2PIN |
2 |
|
|
Molex 4Pin |
2 |
|
|

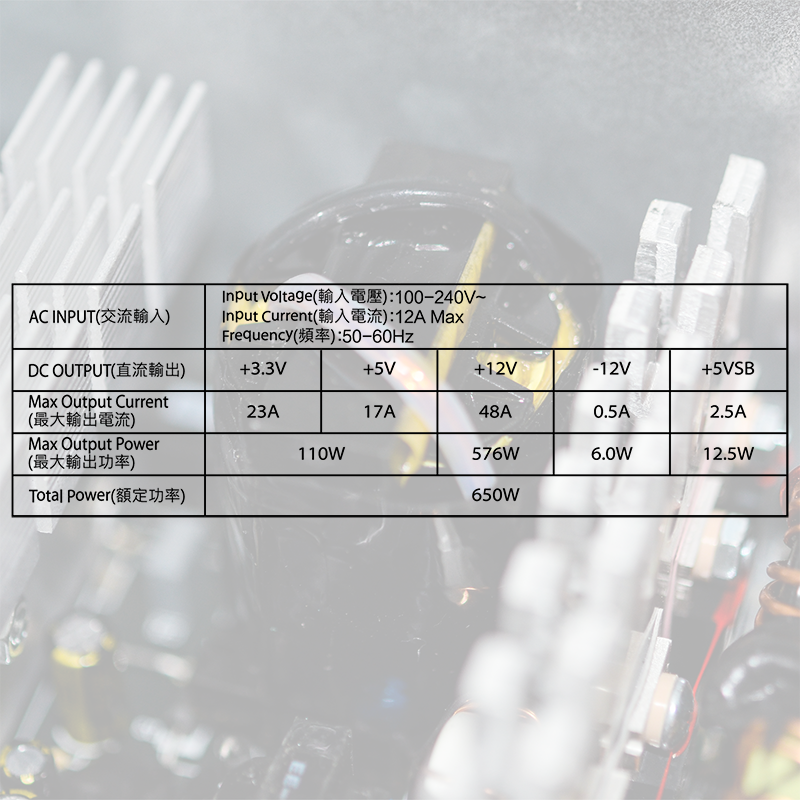

AC INPUT |
100-240Vac 50-60Hz 12A |
||||
|
DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5VSB |
|
Max. Output Current |
23A |
17A |
48A |
0.5A |
2.5A |
|
Max. Output Power |
110W |
576W |
6W |
12.5W |
|
|
Total POWER |
650W |
||||
