TITAN GOLDPremium High- End ATX Gaming Power Supply√ ATX 3.0 & PCIe Gen 5.0 ready √ Fully modular available in 750W, 850W, 1000W, and 1200W √ Equipped with 100% Japanese 105°C capacitors √ Includes 135mm FDB silent fan with zero RPM mode √ 80 PLUS GOLD and Cybenetics Gold certified √ Supports Nvidia®GeForce RTX®40 Series GPUs √ 10-year warranty |
Silent Power for Every Gamer:
The MONTECH TITAN GOLD Series
Introducing the MONTECH TITAN GOLD series, delivering premium components and ultra-quiet high performance tailored for gamers at every level. With ATX 3.0 and PCIe Gen 5.0 compatibility, the TITAN GOLD is a must-have for those eyeing the NVIDIA GeForce RTX 40 series GPUs.
Compliant with The Highest Standards
The TITAN GOLD is ATX 3.0 and PCIe Gen 5.0 ready, it has an output port that is compliant with PCIe 5.0, includes native 12+4 pin 12VHPWR connector, which is designed to better communicate with the newer GPUs and delivers up to 600W.
Also, the TITAN GOLD series are fully compliant with Intel PSDG ATX 3.0, the power supply can hold up to 2x total power excursion and 3x GPU power excursion.
80 PLUS Gold & Cybenetics Gold Certified
TITAN GOLD is extremely efficient and quiet with dual authentic certifications, and a maximum efficiency above 92%.
Elevate Your System with TITAN GOLD's Premium Components

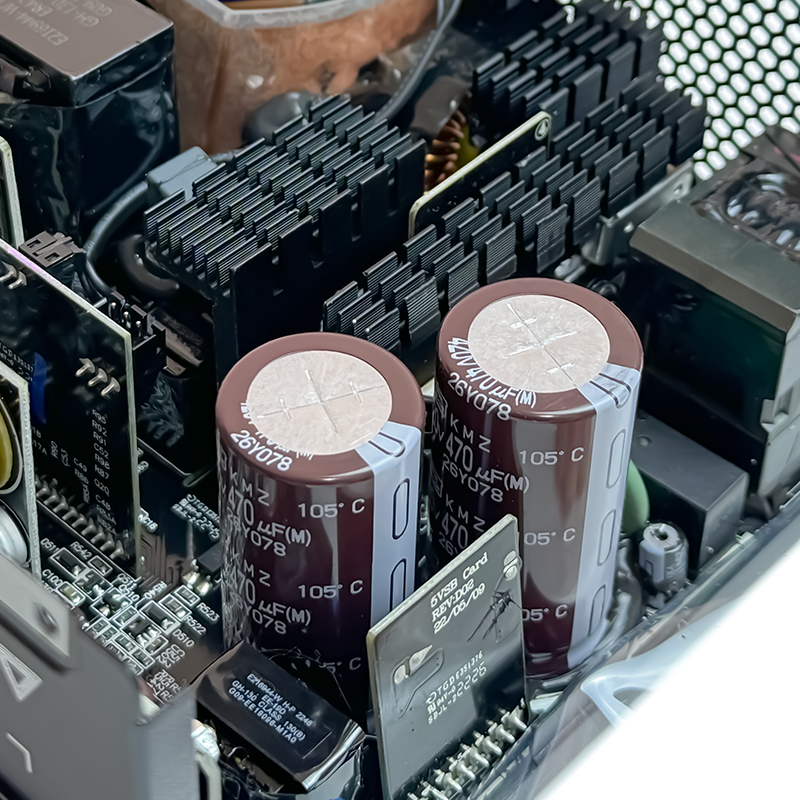

Elevate your setup with TITAN GOLD's premium Japanese capacitors, rated at 105°C and bolstered by dual bulk capacitors. These high-quality components ensure unmatched durability and stability for your system.
Power Perfected, Unleash Optimal Performance with TITAN GOLD
TITAN GOLD's advanced technology, featuring half-bridge, LLC, and Synchronous Rectifier (SR) tech, ensures exceptional signal stability and power efficiency. With DC-to-DC conversion for precise voltage regulation and minimal ripple noise, TITAN GOLD guarantees optimal performance
Whisper-Quiet Performance with TITAN GOLD Smart Zero Fan Function
Experience whisper-quiet operation with the TITAN GOLD's 135mm fluid dynamic bearing (FDB) fan. With zero RPM mode until 15-20% loading, it maintains silence during light usage. At maximum load, the noise level peaks at just 27 dBA at 1400 RPM.
Cybenetics Ultra Quiet Certified
TITAN GOLD earns the prestigious Cybenetics LAMBDA A Certification, verifying its superior noise reduction and efficiency levels through independent testing.
Compatible with all generations of GPU
The TITAN GOLD series provide various I/O interfaces, leading to the satisfaction of the power supply not only for the new generation 40 series GPU, but all generations from AMD and NVIDIA.
Reliable & Safe
Equipped with industrial level of power protection, including all six protections mechanisms to ensure stable and safe system operation. Plus 10 year-warranty to guarantee long-term reliable use.
Specifications
Product Name |
TITAN GOLD 1000W |
|
ATX Version |
Intel ATX12V |
|
PFC |
Active PFC (>0.9 typical) |
|
Input Voltage |
100-240Vac |
|
Input Current |
15A |
|
Input Frequency |
50-60Hz |
|
Dimensions (L*B*H) |
150*160*86mm |
|
Fan Size |
135mm ( FDB Fan ) |
|
Efficiency |
90% Typically |
|
Operating Temperature |
0-45°C |
|
Protections |
OVP / OPP / OTP / SCP / OCP/ UVP |
|
Regulatory |
cTUVus / TUV / CB / CE / FCC / RoHS / BSMI |
|
Connectors |
M/B 20+4Pin |
1 |
CPU 4+4Pin |
2 |
|
PCIE 6+2 |
5 |
|
SATA |
12 |
|
Molex 4Pin |
4 |
|
12+4PCIe 5.0 |
1 |
AC INPUT |
100-240Vac 50-60Hz 15A |
||||
DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5VSB |
Max. Output Current |
22A |
22A |
83.33A |
0.3A |
3A |
Max. Output Power |
120W |
1000W |
3.6W |
15W |
|
Total POWER |
1000W |
Reviews
Aris from Cybenetics& Hardware Busters - The most authoritative expert on Power Supply globally.
"TITAN GOLD proved very good, achieving second place in the overall performance chart but at the most competitive price of all. It will allow you even to power an energy-hungry NVIDIA RTX 4090 flagship GPU."
Cyebentic & Hardware Busters
The full review
