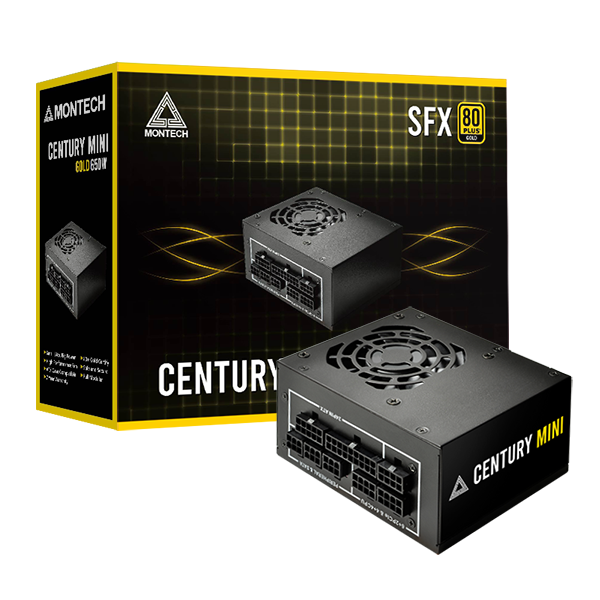

CENTURY MINI 650

CENTURY MINI 650 GOLD

Small Size, Big Power

SFX Form Factor

Full Modular Cabling

80 PLUS Gold Certified

100% Japanese High Quality Capacitors

Compatible With Any Case

Seven Year Warranty

CENTURY MINI 650

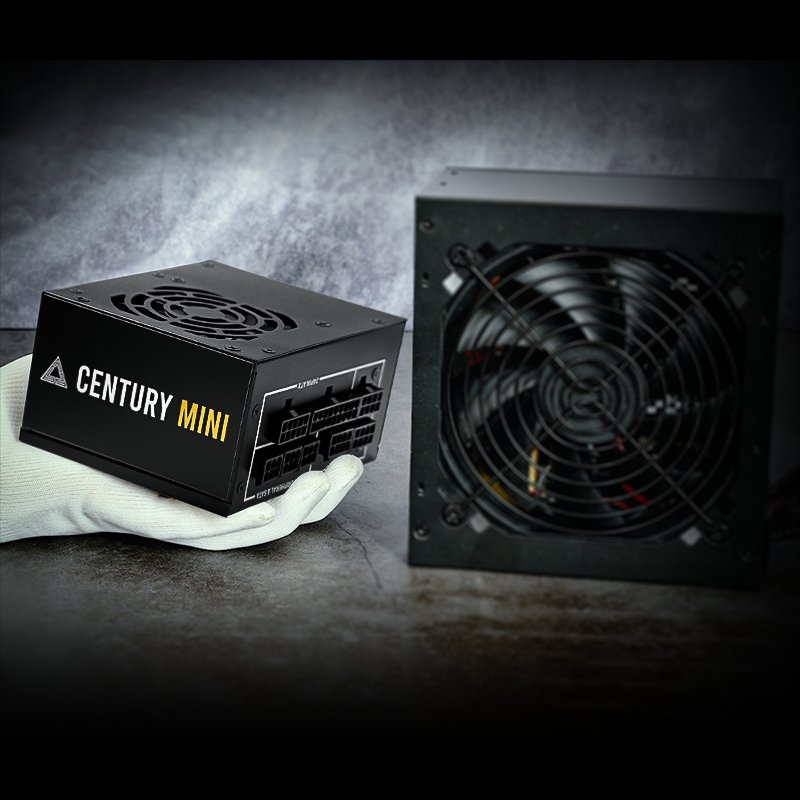

Palm size, Gigantic Power

CENTURY MINI employs high-density compact design, allowing users to easily grasp the power supply with the palm of the hand. Meanwhile, maintaining the high quality standard of the CENTURY series to provide the most powerful SFX form factor in the market.

CENTURY MINI 650

80 PLUS GOLD EFFICIENCY

CENTURY MINI delivers power at up to 90% efficiency, lowing energy consumption and reducing noise, which benefits both your PC and Power Bill.

CENTURY MINI 650
CENTURY MINI 650
CENTURY MINI 650

Safe and Secure

CENTURY MINI employs high quality components and 100% Japanese Capacitors, providing sustained power and long-term reliability.

CENTURY MINI 650

High Performance, Low Noise

Apart from other SFX power supplies use 80mm standard fan, CENTURY MINI upgrades to 92mm high quality fan, providing quiet operation and improving performance at heavy loads.

CENTURY MINI 650

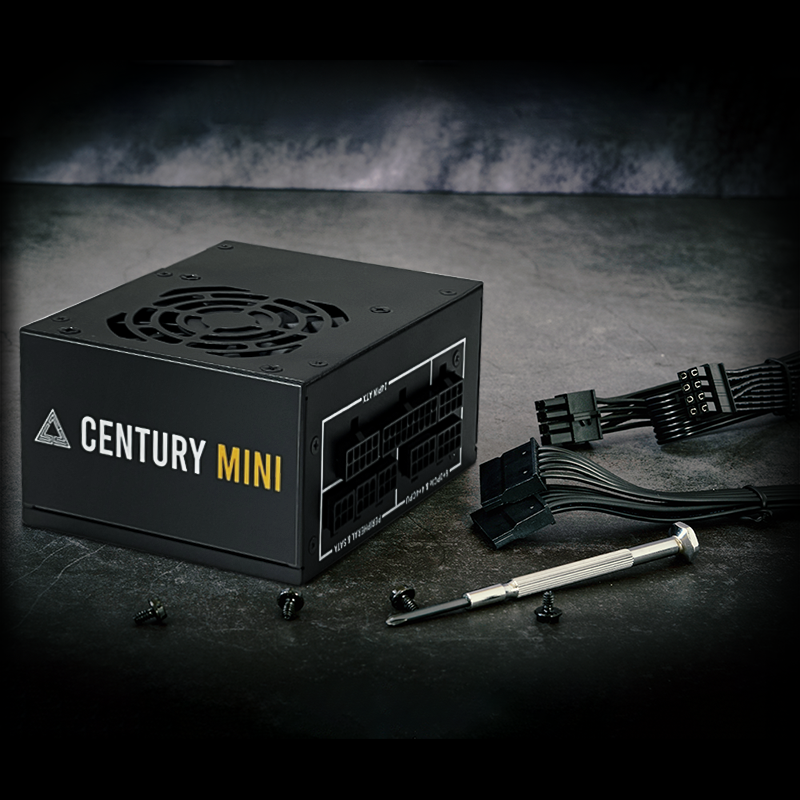

Full Modular Cabling

Fully modular cable system offers premium, flexible cables that fit right into your high-end build. The modular cables make routing easier and reduce clutters when building your PC.











Compatible with Any Case Form Factor

CENTURY MINI Includes an SFX-to-ATX power bracket for easy installation into any case form factor, ranging from mini ITX build to full tower E-ATX build.



























Reliable 7 Year Warranty

The extensive 7 year warranty not only makes users feel secure, it also displays Montech’s confidence in the product.

















Specifications

Product Name

CENTURY MINI 650

Type

Intel SFX12V

Input Voltage

100-240Vac

Input Current

8A

Input Frequency

47-63Hz

Dimensions (L*B*H)

100*125*63.5mm

Fan Size

90mm

MTBF

>100,000 Hours

Operating Temperature

0-45°C

Protections

OPP/ SCP / OTP/ OVP / UVP/OCP

Regulatory

cTUVus / TUV / CB / CE / CCC / RoHS / FCC / UKCA

Connectors

M/B 20+4Pin

1

CPU 4+4Pin

2

PCIE 6+2

4

SATA

6

Molex 4Pin

3

FDD

1



AC INPUT

100-240Vac 47-63Hz 8.0A

DC OUTPUT

+3.3V

+5V

+12V

-12V

+5VSB

Max. Output Current

18A

15A

54A

0.3A

3A

Max. Output Power

90W

648W

3.6W

15W

Total POWER

650W
